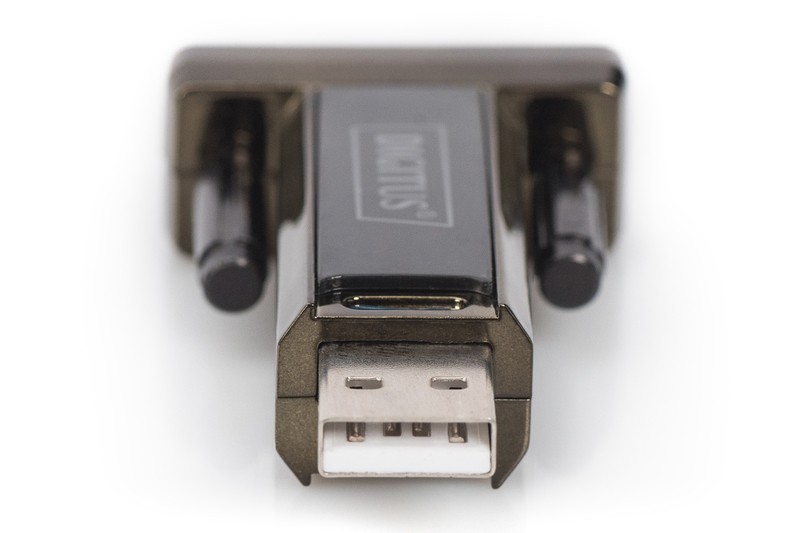

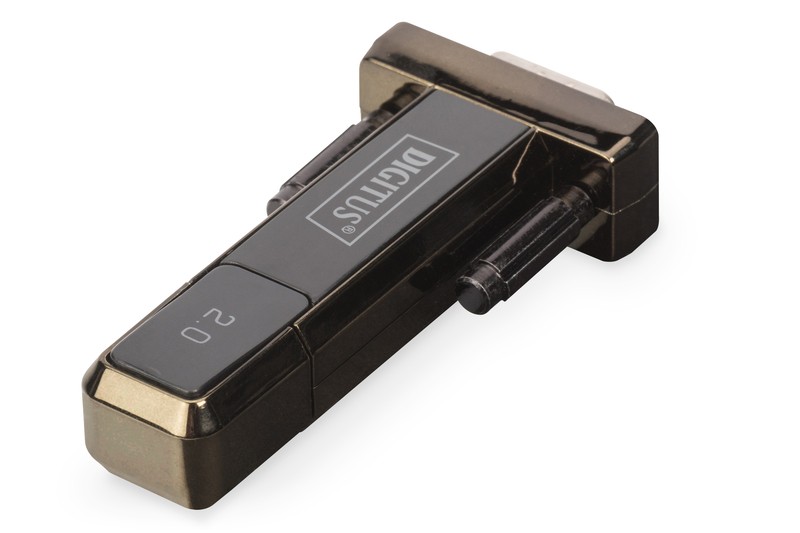

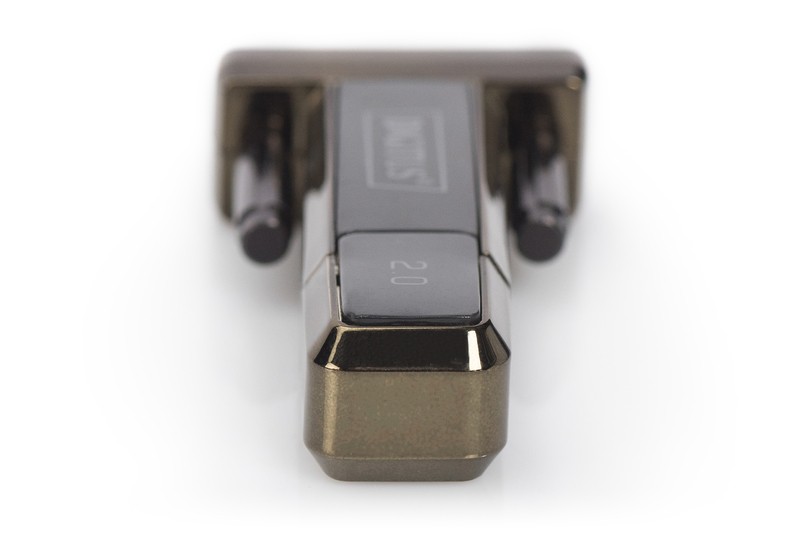

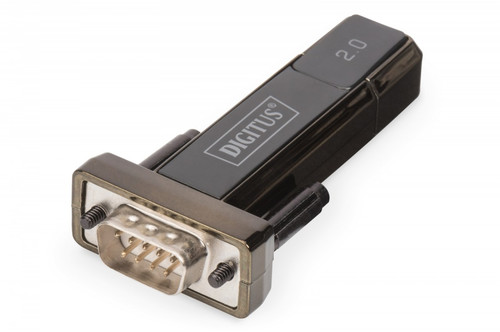

DIGITUS USB 2.0 serial adapter
Available
add to wish list
Technical data
| Type | Adapter |
| Colour | Black |
| Weight | 90 gram |
| Other features | Provides a serial RS232 interface over USB 2.0 Downward compatible to USB 1.1 The transmission speed can be adjusted between 75 bits and 128,000 bits per second. Supports remote-wake-up and power-management Chipset: FTDI / FT231XS + FT3243S Individual configuration via FTDI chipset 1 × RS232 plug (Sub D 9-pin) / 1 × USB A plug Connector: Full Duplex Gold-plated contacts With USB extension cable, approx. 80 cm Supports Windows 10, 8.1, 8, 7, Vista, XP, Mac OS X and Linux True 3.3V CMOS drive output and TTL input |
| Accessories included | USB serial adapter 80cm USB extension cable |
| Cable length | 80 Centimeter |
| Usage | Computer |
| Connectors #1 | USB 2.0 8pin Male |
| Connectors #2 | DB9 Serial Port Male |
| Standard | USB 2.0 |
Description
Provides a serial RS232 interface via USB 2.0

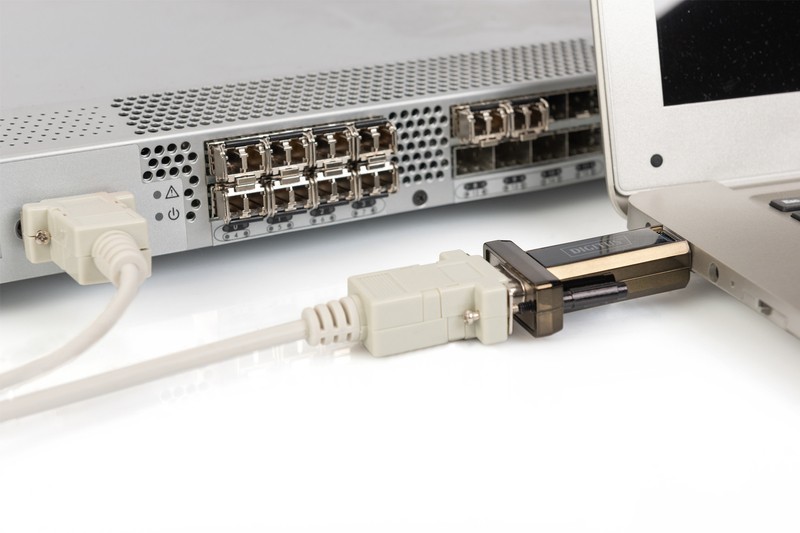

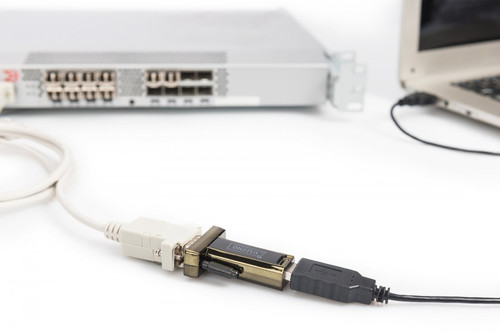

- Enables data exchange between PCs and serial peripheral devices (machine control systems, modems, sensors, etc.) via the USB port.
- Meets the USB 2.0 standard
- Incl. 80 cm USB extension cable
- PL2303GT chipset for individual configuration
The DIGITUS® USB 2.0 serial adapter is a practical solution for serial connectivity. RS232 serial interfaces are no longer available on new hardware, so the DIGITUS® USB 2.0 serial adapter enables data exchange between a computer USB 2.0 port and peripheral devices with serial interfaces (COM port, RS232). These include, for example, weather stations, sensors, machine control systems, set-top boxes, gaming consoles, PDAs, scanners, modems, ISDN adapters and many other peripheral devices. The USB 2.0 serial adapter is downwardly compatible with USB 1.1 and enables adaptable baud rates of between 75 and 128,000 bits per second. The customizable PL2303GT chipset is compatible with all common operating systems and also supports power management and remote wake up. A separate power supply is not required, because the device is powered through the USB connection.
Technical Details
- Provides a serial RS232 interface via USB 2.0
- Meets the USB 2.0 standard
- Downward compatibility with USB 1.1
- Adaptable data transfer rates of between 75 and 128,000 bits per second.
- Supports remote wake up and power management
- Chipset: PL2303GT
- Customizable with the PL2303GT chipset
- 1× RS232 plug (Sub D 9-pole) / 1× USB A plug
- Interface: Full duplex
- Gilded contacts
- Incl. USB extension cable, approx. 80 cm
- Supports Windows 10, 8.1, 8, 7, Vista, XP, Mac OS X and Linux
- True 3.3V CMOS drive output and TTL input
