Digitus Extender AV HDMI Cat. 5e
Technical data
Type | Adapter |
Colour | Black |
Dimensions | 7,2 x 6,7 x 2,3 cm |
Other features | HDCP 1.2a support Bandwidth: 4.95 Gbps Color depth: 8 bits It supports uncompressed audio signals, such as LPCM Metal housing Compact dimensions, simple operation and installation Power supply: DC 5V / 2A |
Accessories included | HDMI video extender transmitter Receiver HDMI video extension cable Power supply: DC 5V / 2A Infrared transmitter Infrared receiver User manual |
Usage | Video |
Connectors #1 | HDMI Type A Female x2 |
Connectors #2 | HDMI Type A Female |
Standard | HDMI High Speed with Ethernet |
Description
HDMI extension cable set, 50 m via network cable (CAT 6 / 6a / 7), EDID, 1x HDMI Loop Out, FHD 1080p
Increases the maximum length of the HDMI cable up to 50 m, with only a single network cable between the transmitter and receiver.
- Extends the maximum length of the HDMI cable to 50 m through a single network cable
- Highest video resolution supported: 1080p / 60 Hz
- Supports CAT 6, CAT 6A network cables
- EDID-Switch allows you to set resolution and audio format on the transmitter unit

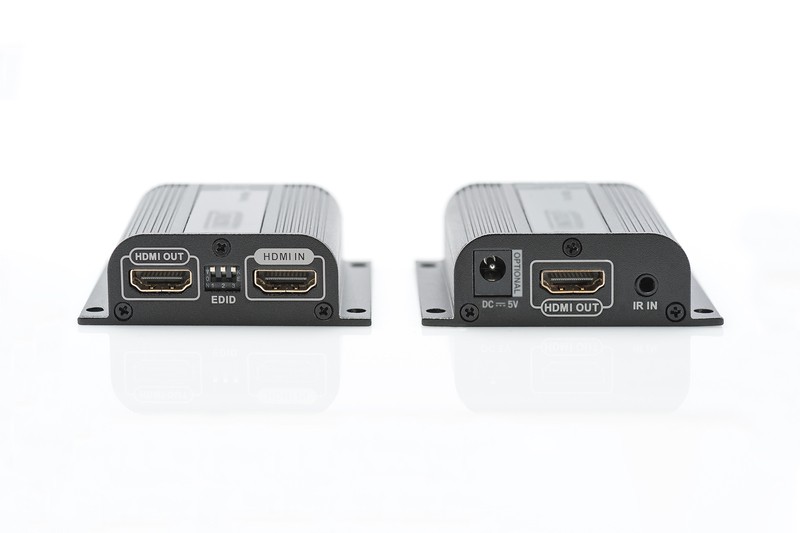

- HDMI Loop Out connects local monitor to the transmitter unit.
- Supports PoE (Power over Ethernet) cable so no power supply to the receiver is needed

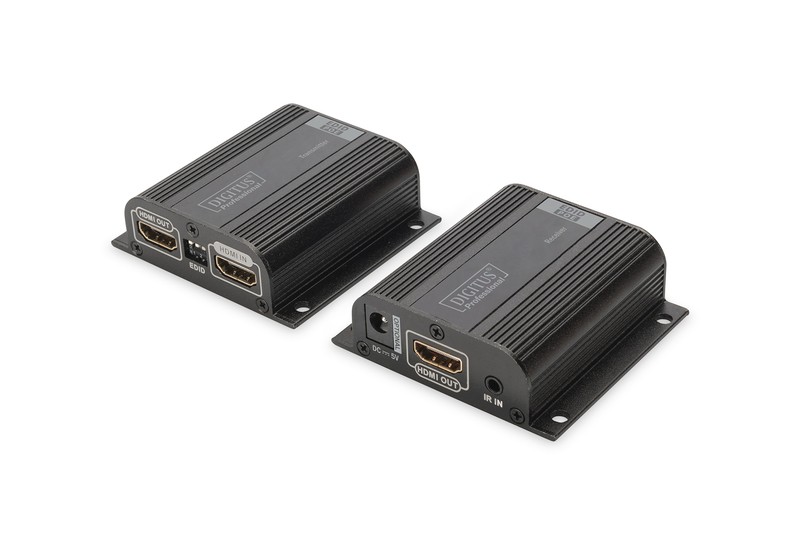

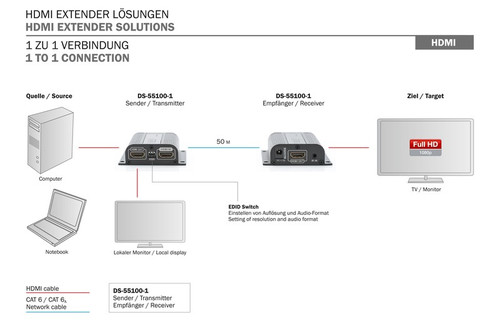

Digitus HDMI, Full HD extension kit is a solution for video signal extension up to 50 m meeting the highest requirements. It transmits digital video and audio signals up to a maximum length of 50 m. The highest supported video resolution is 1080p / 60Hz. The transmitter unit has an EDID switch, which allows you to adjust the resolution and audio format of the output signal. The transmitter also has an HDMI Loop Out port that lets you connect a local monitor. However, thanks to the PoC (power over cable) cable support, the transmitter unit must have power supply. The set includes two two-way infrared modules (transmitter, receiver), through which you can remotely control the connected input source.
7.2 x 6.7 x 2.3 cm

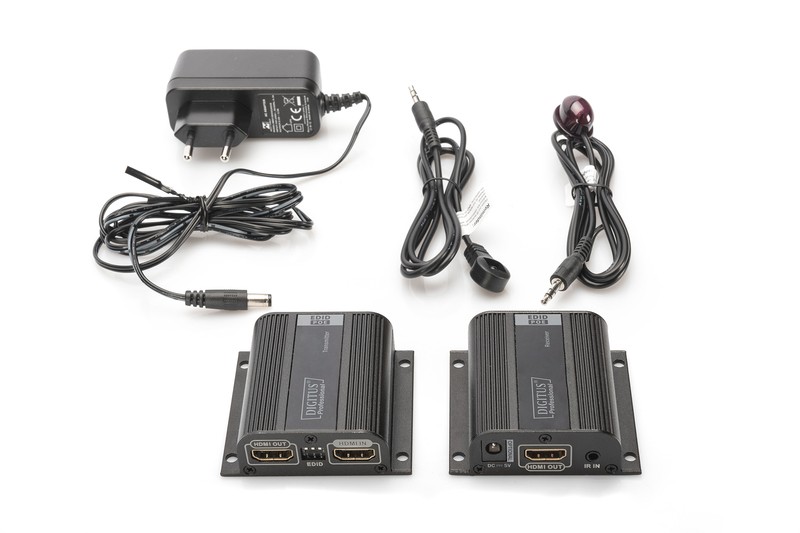

- HDMI video extension transmitter
- HDMI video extension receiver
- Power supply: DC 5V / 2A
- Infrared transmitter
- Infrared receiver
- User manual
- HDCP 1.2a support
- Bandwidth: 4.95 Gbps
- Color depth: 8 bits
- Supports uncompressed audio signals such as LPCM
- Metal housing
- Compact dimensions, simple operation and installation
- Power supply: DC 5V / 2A
