Lanberg Cable, grey wire CAT 6 CU 305m UTP

<< Previous Next >>
Availability: Available
Delivery: 02-12-2024
Price: €254.22 254.22
quantity pcs
add to wish list
Brand: LANBERG
Product code/SKU: 311102

Technical data

Type Adapter
Colour Grey
Category CAT 6
Usage Antenna cable
Connectors #1 None
Connectors #2 None
Twisted-pair cable U/UTP

Description

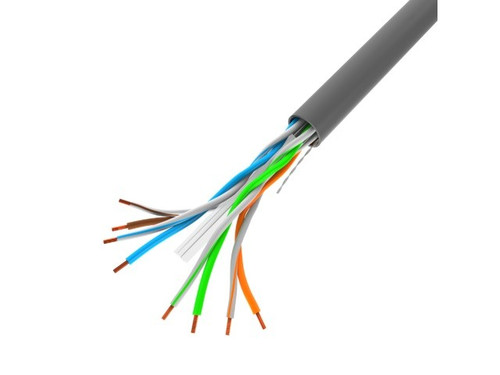

CAT 6 CU 305 m UTP cable, grey wire

  • Category 6 UTP LAN cable (unshielded)
  • Length: 305m
  • Cable cores made of pure copper (CU 100% copper)
  • AWG 23 (4 * 2 * 0.55mm)
  • Structure of the wire: single wire
  • Color: gray COOL GRAY 5C
  • Printed length counter every meter of cable
  • PVC outer insulation: 6.0mm
  • HDPE core insulation: 0.98mm
  • Work up to 250Mhz

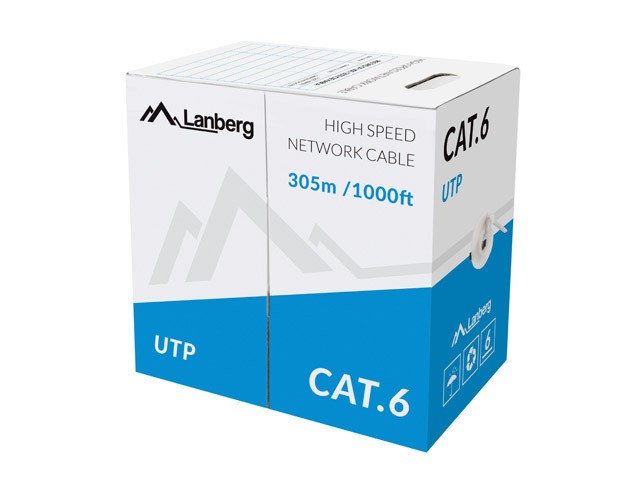

  • Package: box
  • Package dimensions (W x D x H): 42x42x24 cm


Electrical specifications (20 degrees):

  • Conductor resistance (max.): 20 - 36Om / 305m
  • Insulation resistance (min.): 5000mOm km
  • Capacity para-a-ground: <160PF / 100m
  • Impedance characteristics: <100Om (+/- 15)
  • Storage temperature and transport: 0 - 60 degrees
  • Operating temperature: -20 - 75 degrees
  • Operating distance: 100m
