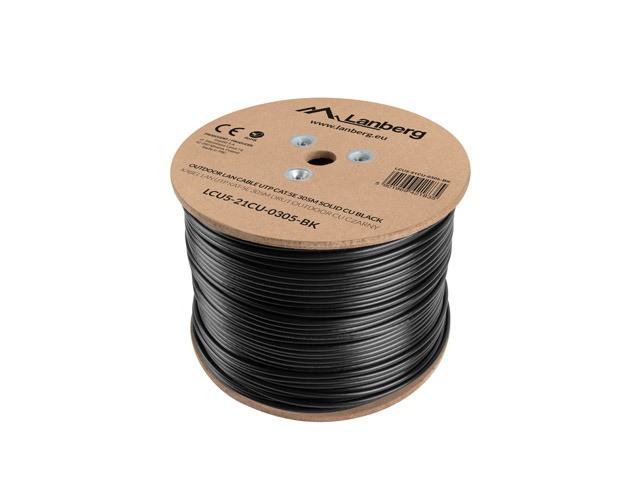

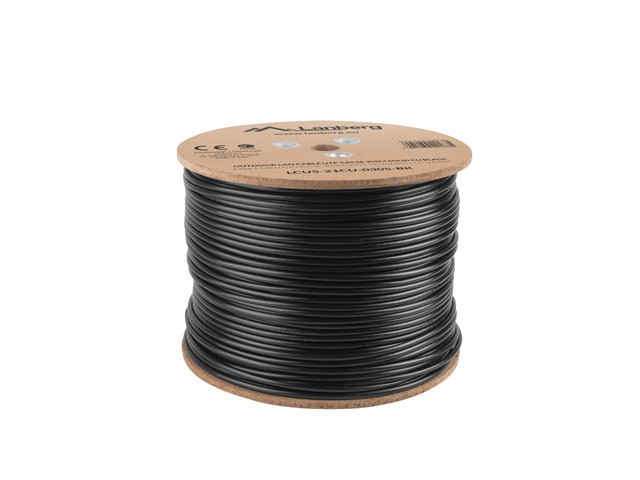

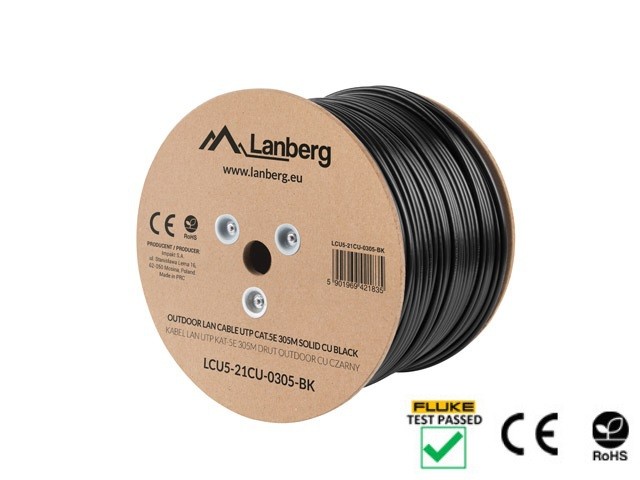

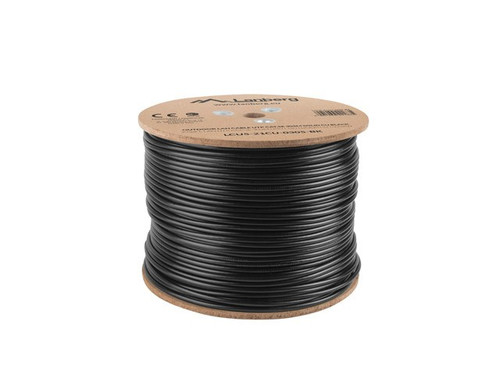

Lanberg LAN Cable UTP Cat.5E CU outdoor 305m, black

<< Previous Next >>

Availability:

Low Stock

Delivery: 02-12-2024

Price: €241.14 241.14

quantity pcs

add to wish list

Brand: LANBERG

Product code/SKU: 311094

Technical data

Type	Cable
Colour	Black
Other features	Electrical parameters (20 degrees): Core resistance (max.): 20 - 40Om / 305m Insulation resistance (min.): 5000mOm km Para-a-ground capacity: 160PF / 100m Impedance characteristics: 100Om (+/- 15) Storage and transport temperature: 0 - 60 degrees Working temperature: -20 - 75 degrees Operating distance: 100 m
Category	CAT 5e
Cable length	305 Meter
Usage	LAN
Connectors #1	None
Connectors #2	None
Twisted-pair cable	U/UTP

Description

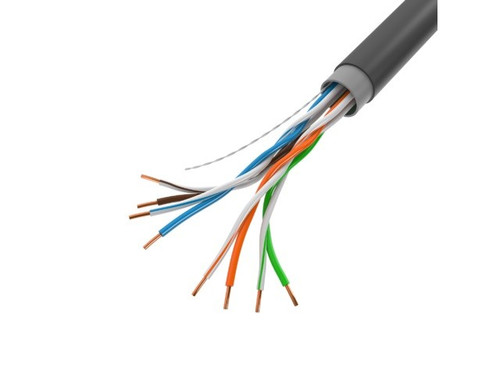

- LAN cable category 5e UTP (Unshielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 24 (4*2*0.50mm).
- Conductor stranding: single wire.
- Color: Black.
- Printed length counter at every meter of cable.
- External PE insulation: 5.0mm.
- HDPE conductor insulation: 0.88mm.
- Operation up to 100Mhz.
- Recommended connector / guide diameter for braided cables: 1.0 mm.
- Package: Wooden drum.
- Packaging dimensions (W x D x H): 35x35x25 cm.

Electrical characteristics (20 degrees):

- direct-current resistance: ?9.1?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.
