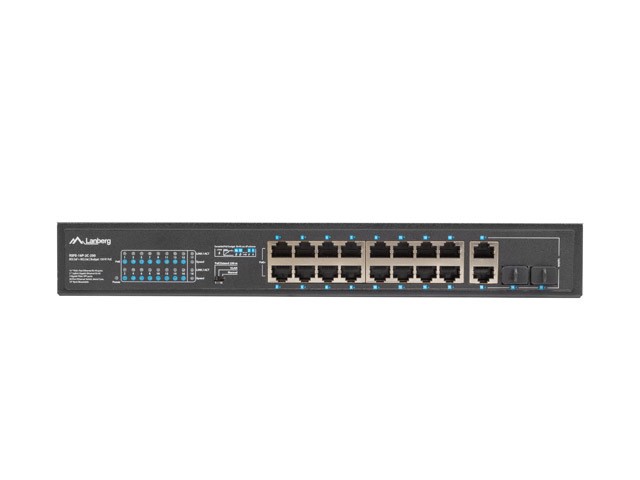

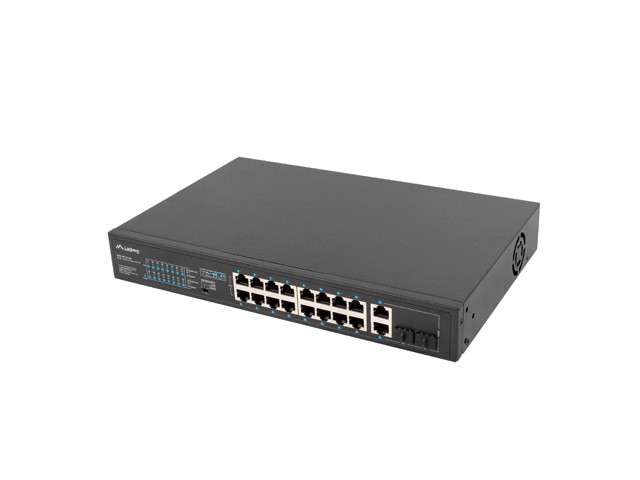

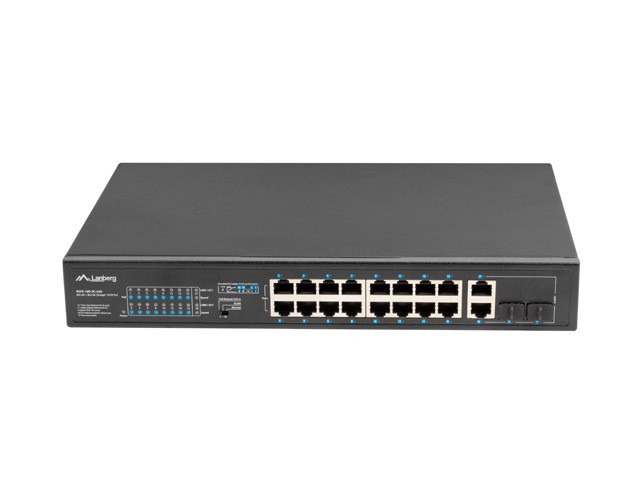

Lanberg Switch 16X 100MB POE+/2X Combo Unmanaged Rack 19" Gigabit Ethernet 250W
Technical data
Dimensions | 208 x 320 x 45 mm |
Weight | 1.9 kilogram |
Other features | Protection class: IP20 Cooling: Vents, Passive Operation signalling: LED Data communication height: 1 U Number of screws required: 4 |
Application | Medium and large companies |
Power consumption | 250 Watt |
Network architecture | GigabitEthernet |
Fan | No |
Power supply | Mains (230V) PoE: PoE, PoE+ Supported PoE standards: 802.3af, 802.3at Maximum power per port: 30 W Total PoE budget: 250 W |
Chassis type | Rack |
Switch class | Unmanaged |
Number of 10/100/1000 Mbps ports | 2 |
Number of SFP+ ports | None |
Throughput | 3.6 GB/s |
Forwarding rate | 1000 MB/s |
MAC address table size | 16000 |
Number of 10/100 Mbps ports | 16 |
Number of 10Gb ports | None |
Number of PoE ports (PoE & PoE+) | 16 |
Number of PoE+ ports | None |
Number of COMBO ports | 2 |
Number of SFP ports | None |
Number of QSFP+ ports | None |
Console port | No |
Supported protocols and standards | IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3i 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x (Flow-Control) |
10/100/1000/2500 Mbps ports | None |
Description
The switch is fitted with a total of 18 RJ-45 ports, including 16 PoE+ (Fast Ethernet) and 2 Uplink (Combo Gigabit) ports. The well-thought-out design and attention to details and quality of components enable the user to achieve up to 150 W of real power for the end-devices, which translates into the simultaneous connection of:
- 16 IEEE 802.3af devices (max. 15W per port) or,
- 8 IEEE 802.3at devices (max. 30W per port),
The 2 remaining (Uplink) ports are dedicated to transferring data traffic between 16 PoE+ ports and external devices. In the case of surveillance/control systems, this is particularly useful as it allows the user to simultaneously play the recording(s) from the IP cameras on the NVR and share it further, e.g., in the local network or on the Internet.
