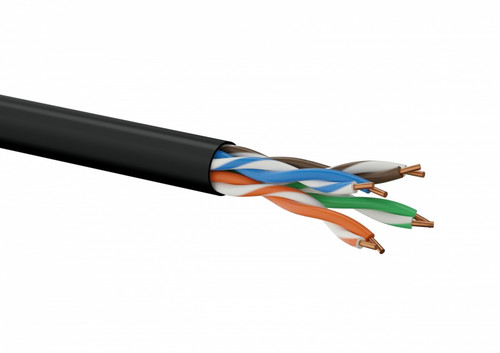

Q-Lantec U/UTP cat.5e 4x2x24AWG Copper cable, PE OUTDOOR

<< Previous Next >>

Availability:

Out of stock

Price: €167.01 167.01

quantity pcs

add to wish list

Brand: Q-LANTEC

Product code/SKU: 731764

Technical data

Type	Cable
Colour	Black
Category	CAT 5e
Cable length	305 Meter
Usage	LAN
Connectors #1	None
Connectors #2	None
Twisted-pair cable	U/UTP

Description

The cables are designed for outdoor installations in ICT networks, CCTV, etc.

CONSTRUCTION AND ELECTRICAL PARAMETERS
Category   5e
Class   D (100MHz)
Cross section AWG   4x2x24AWG
Conductors   single stranded copper (100% Cu)
Insulation   polyethylene
Fire classification CPR (Euroclass)   Fca
Centre   4 twisted pairs wrapped with polyester film
Shield   none
Coating   UV resistant polyethylene PE
PoE   802.3 af

ELECTRICAL PROPERTIES AT 20ºC
DC resistance   ≤ 95 Ω /km
Variable resistance   ≤ 2%.
Insulation resistance (500V)   ≥ 5000 MΩ *km

CAPACITIVE REACTIVE RESISTANCE AT 800 HZ NOM. 48 NF/KM
Variable reactive capacitive resistance   ≤ 1500 pF/km
Characteristic apparent resistance (1-1000MHz)   (100 ± 15) Ω
Nominal propagation speed (NVP)   69%
Delayed propagation   Nominally ≤ 535 ns/100m
Delay angle   Nominally ≤ 20 ns/100m
DC system tester, 1 min. (core)   1000 V

MECHANICAL PROPERTIES
Bending radius   4 x outer dia.
Max. drawing force   80 N
Temperature range during use   -40°C to + 60°C
Temperature range during installation   -5°C to + 50°C
Outer diameter   4,8mm
Weight kg/km   25 kg
Packing   box (305m)
