Techly Projector Ceiling Support Extension 545-900 mm Silver
Low Stock
add to wish list
Technical data
| Type | Ceiling |
| Colour | Silver |
| Dimensions | Dimensions of the ceiling mounting plate: 110x130 mm |
| Weight | 1.766 kilogram |
| Other features | - Adjusting the angle of inclination relative to the ceiling plane: 0°-90° - Minimum distance (diameter) of mounting feet: 54 mm - Maximum spacing (diameter) of mounting feet: 320 mm |
| Accessories included | - Projector ceiling mount - Fitting elements - User's manual |
| Material | Aluminum |
| Load (max) | 13.5 kilogram |
| Usage | Projectors |
| Range adjustment | Yes |
| Range (min) | 900 Millimetre |
| Range (max) | 545 Millimetre |
| Vertical adjustment | 15 Degrees |
| Horizontal adjustment | 360 Degrees |
| Cable management system | Yes |
Description

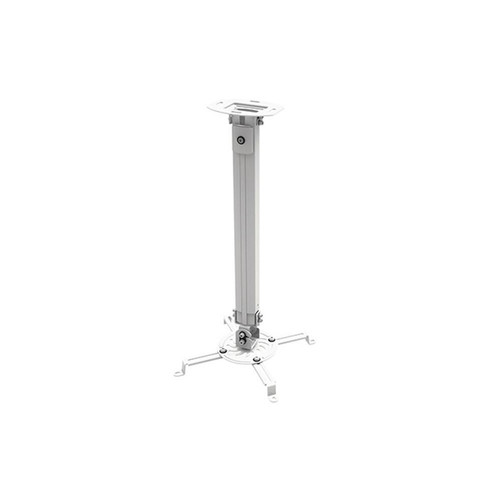

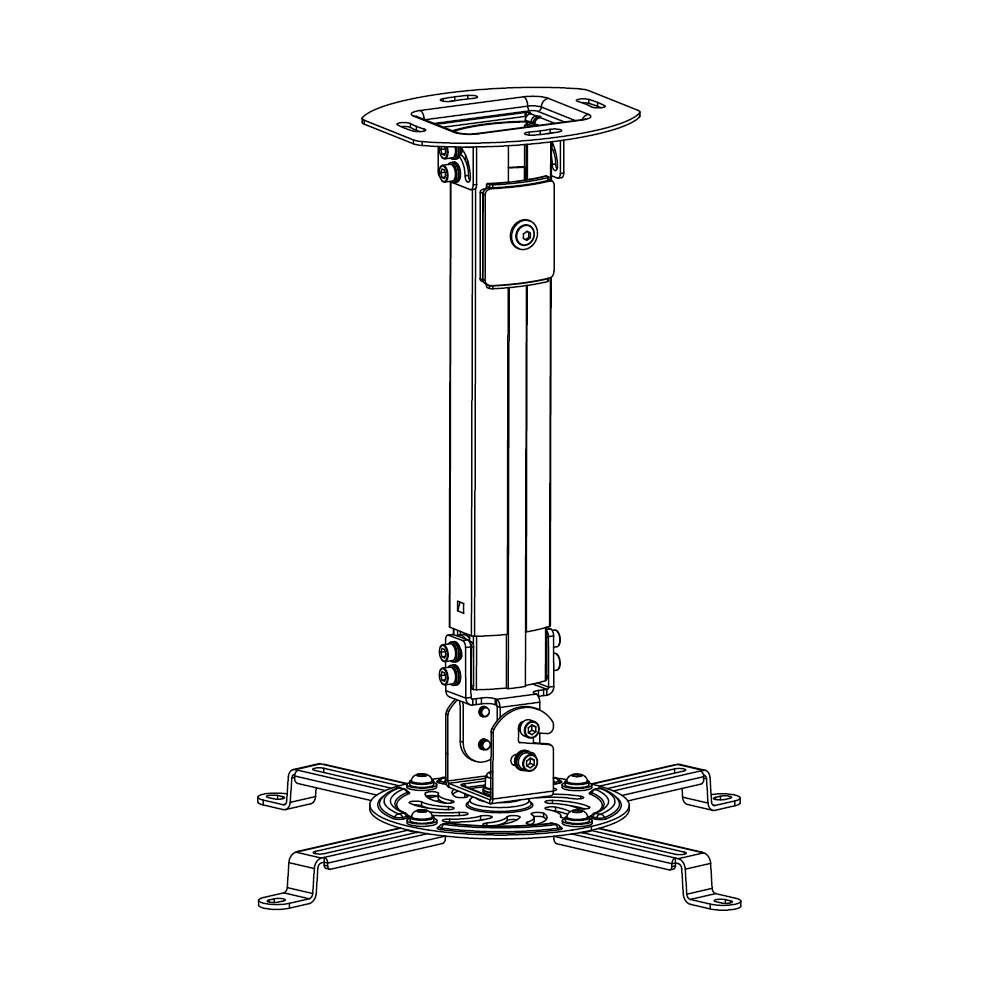

ICA PM-18M is a universal projector ceiling mount up to 13.5kg. The inclination of the mounting plate adapts to applications on both ceiling and floor that sloped. Provides a multidirectional positioning with four adjustable support arms that can adapt to a wide range of mounting holes. The cables required for assembly are run inside of the central column and therefore are not visible. The QD allows you to install the projector quickly and it may be released easily for maintenance. The column aluminum retractable allows adjustment to different heights. This support for video projector is perfect for use in classrooms, meeting rooms, hotels, bars and restaurants, and more.
Features
• Universal bracket ceiling projector
• Suitable for both flat ceiling that sloped
• Compatible with most projectors on the market
• Maximum weight supported: 13.5 kg
Specifications
• Ceiling mount extensible
• With 4 adjustable support arms
• Material: steel and aluminum
• horizontal inclination: ± 15°
• Vertical: ± 15°
• Rotation: 360°
• Adjustable height
• With cable management system
• Finish: powder coating
• Color: silver

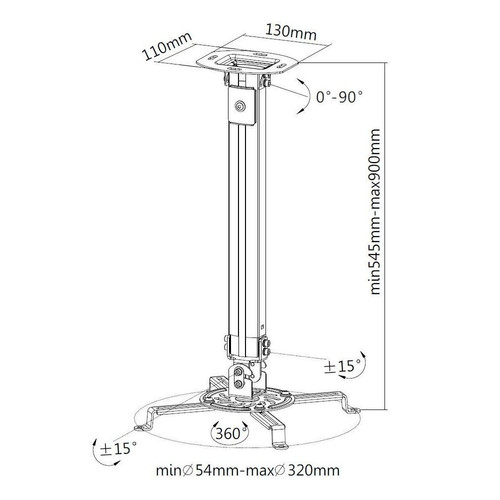

Dimensions
• Base width: 130 mm
• Depth base: 110 mm
• Height: 545-900 mm
• Minimum diameter attack: 54 mm
• Maximum diameter attack: 320 mm
