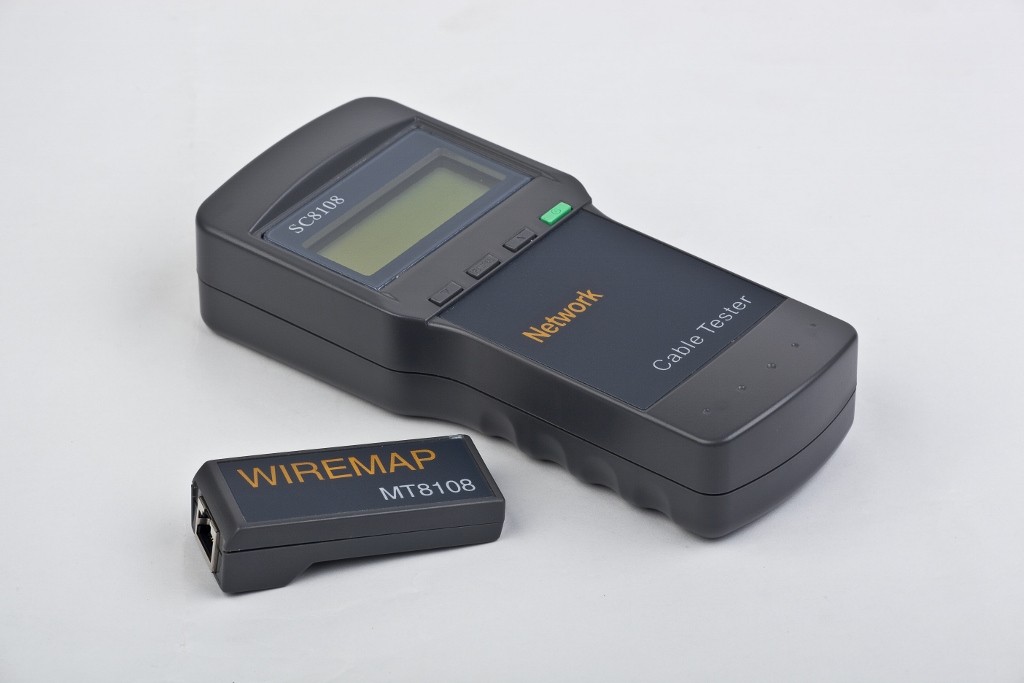

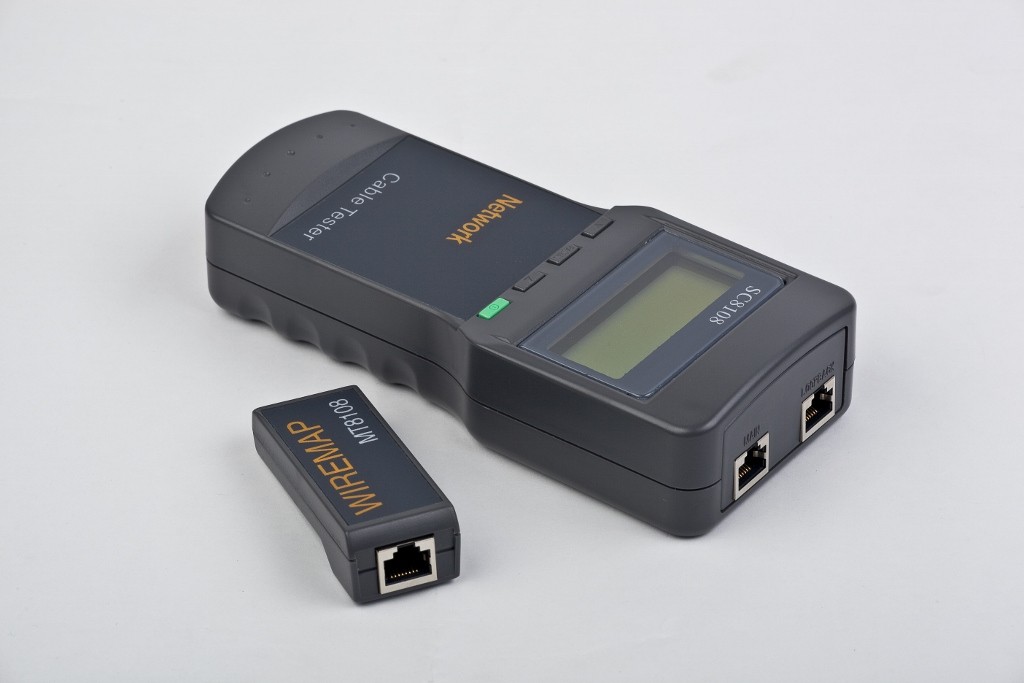

Gembird Digital Network Cable Tester

<< Previous Next >>

Availability:

Available

Delivery: 02-12-2024

Price: €147.67 147.67

quantity pcs

Brand: Gembird

Product code/SKU: 98839

Power	Batteries / rechargeable AA
Connectors	RJ-11
Colour	Grey
Dimensions	180 x 80 x 40 mm
Weight	0.25 kilogram
Other features	- Up to 50 working hours of the battery life - Power supply: 4 x 1.5 V DC AA batteries (not included) - Power consumption: up to 16 mA - Display: 4 x 16 character LCD screen, 61.6 x 25.2 mm - Tester port: tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer - RJ45 port (R) - Max cable length: up to 1350 m - Automatic shut-down: after 30 minutes
Accessories included	- Cable tester - BNC and RJ11 converter
Special functions	- Indicates wiring problems in Cat 5E, 6E, coaxial and telephone cables: open circuit, short circuit, jumper wire, reverse connection - Measures the cable length and determines the distance to the open circuit - The length measurement accuracy up to 97% via built-in calibration - Self-checks and automatically compensates any change in battery capacity or ambient temperature
Media	Coaxial cble
Environment requirements	- Operating temperature: from -10 to 60 °C
Cable locator	No

Spot the wiring problems instantly on the big screen
Suitable for Cat 5E, 6E, coaxial, and telephone cable
Measures the cable length
Suitable for single person use
Long battery life
Indicates wiring problems in Cat 5E, 6E, coaxial and telephone cables: open circuit, short circuit, jumper wire, reverse connection
Measures the cable length and determines the distance to the open circuit
The length measurement accuracy up to 97% via built-in calibration
Self-checks and automatically compensates any change in battery capacity or ambient temperature
Up to 50 working hours of the battery life
