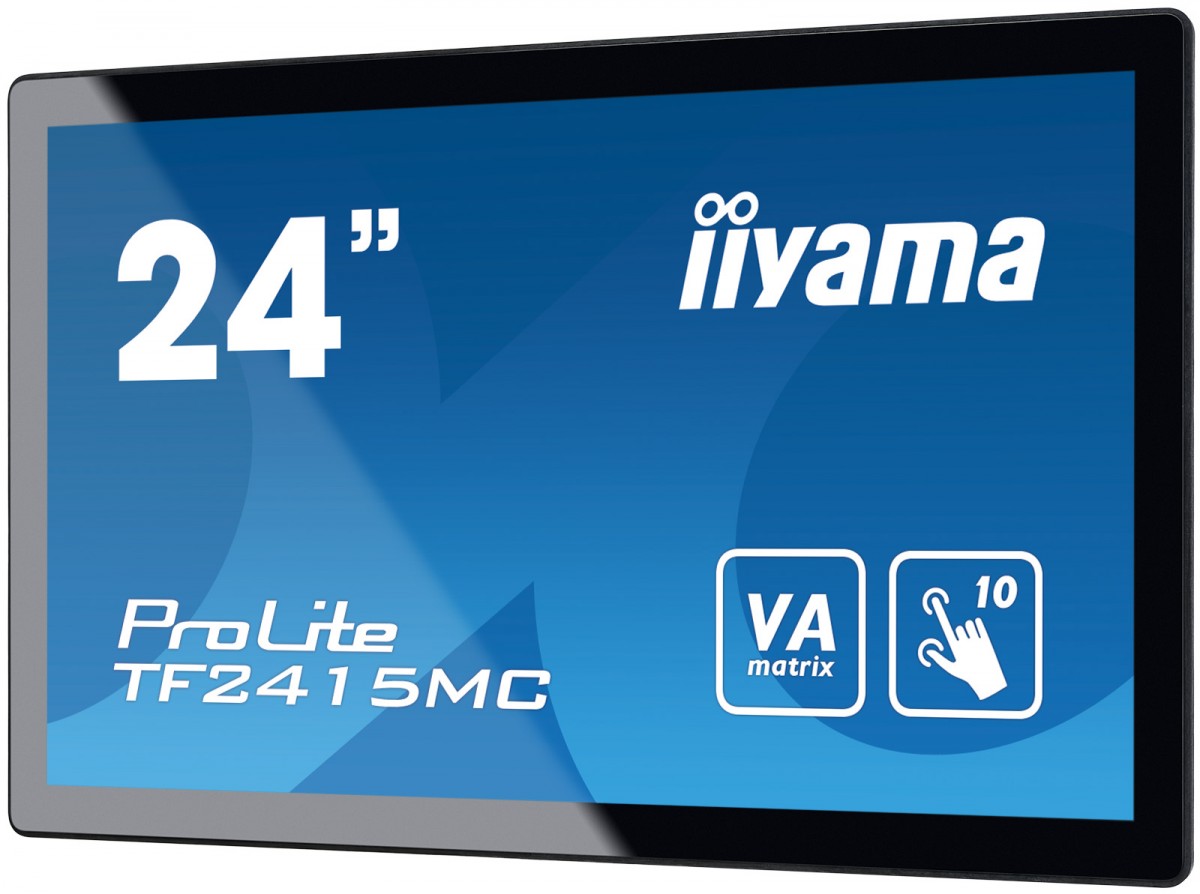

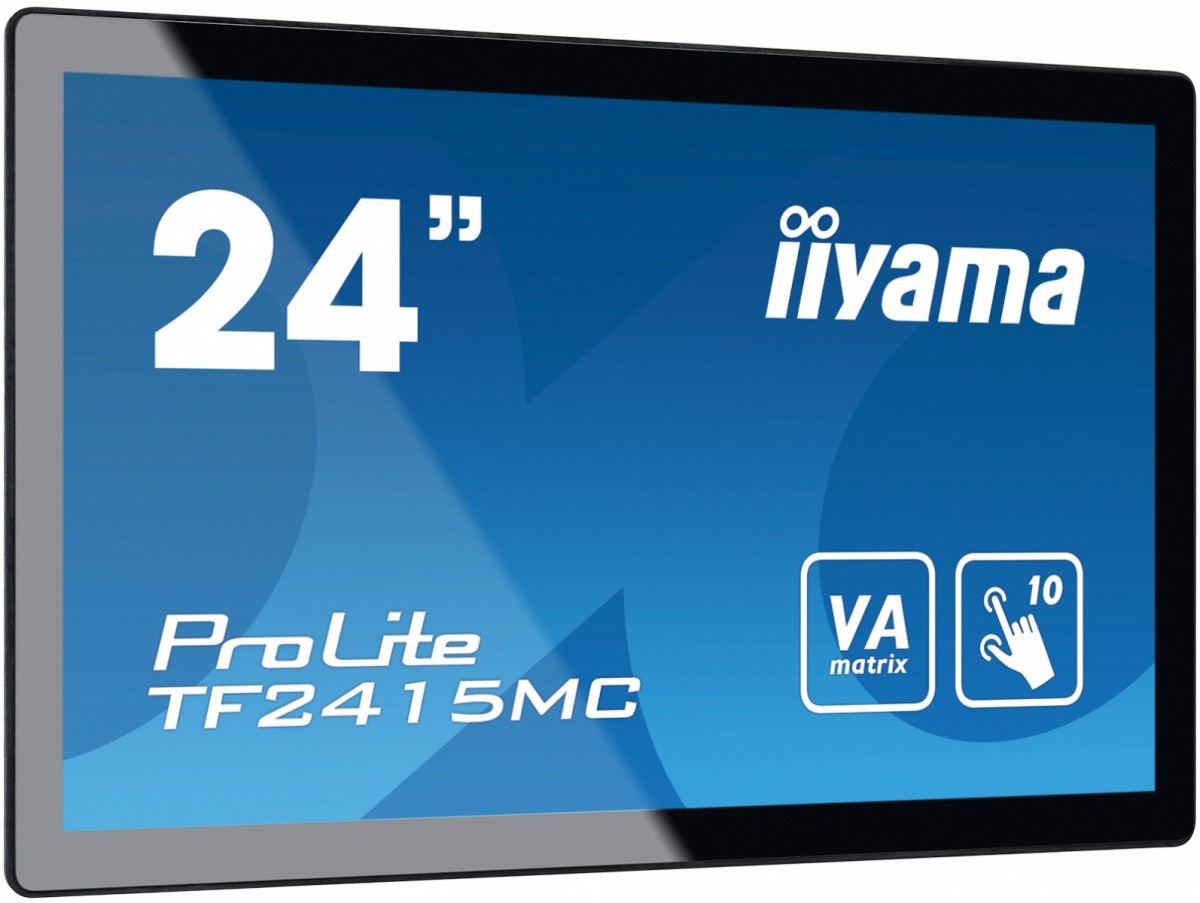

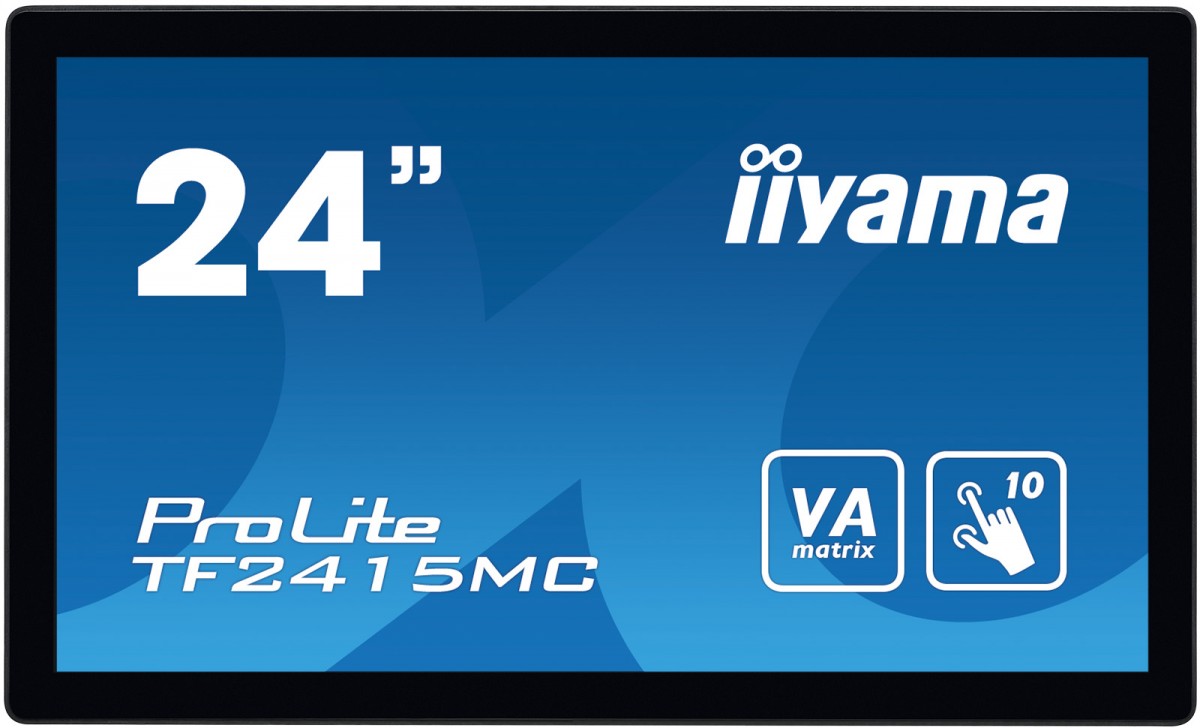

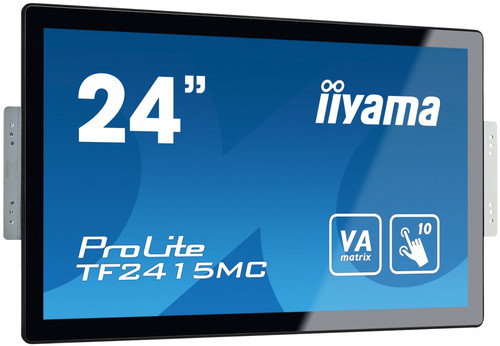

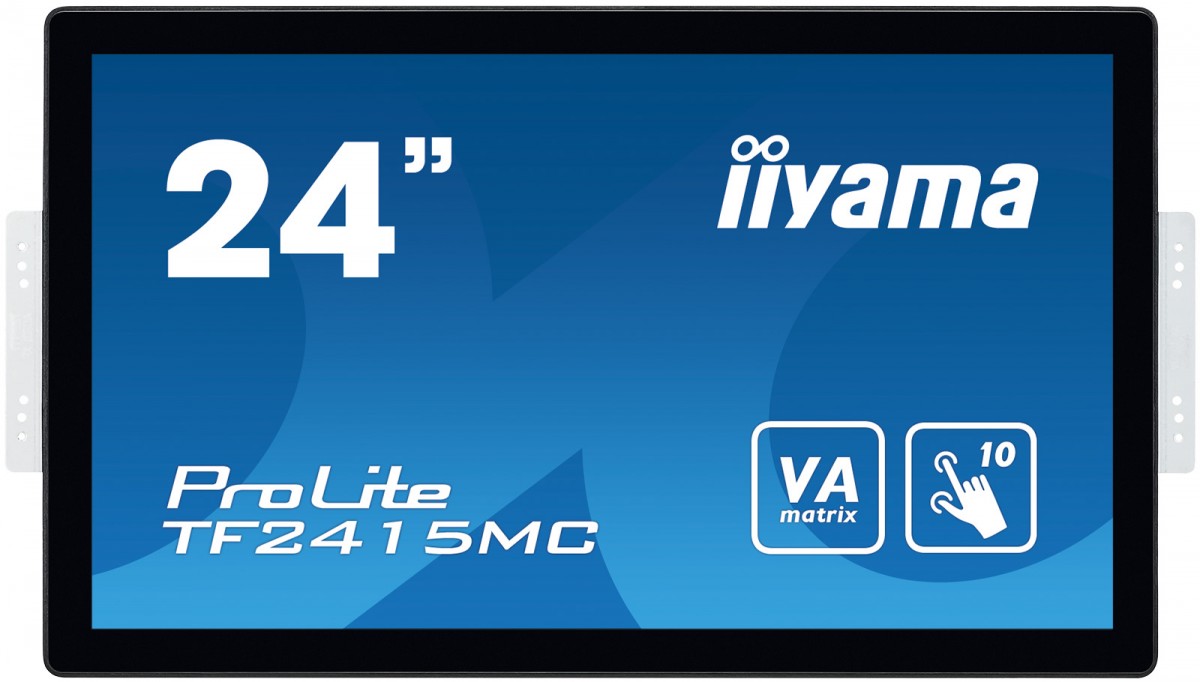

Iiyama 23.8" Monitor TF2415MC-B2 Capacitive 10PKT, Foam, HDMI, DP
Availability: Out of stock
Price: €1,132.22 1132.22
quantity pcs
add to wish list
Brand: IIYAMA
Product code/SKU: 295738
  • ask about product
  • recommend to a friend

Technical data

Colour Black
Weight 5.8 kilogram
Accessories included Power cable (1.8m) USB cable (1.8m) HDMI cable (1.8m) DP cable (1.8m) Quick User Guide Safety Instructions Power Supply Touch Panel Driver Disk (CD-ROM) Mounting strips External control panel
Model ProLite TF2415MC-B2
Aspect ratio 16:9
Screen size (diag.) 23.8''
Matrix type VA
Transreflective technology LED
Dot pitch 0.2745 Millimetre
Resolution 1920 x 1080 (FHD 1080)
Brightness 350 cd/m2
Static contrast 3 000:1
Frequency, horizontal (min) 31.4 kHz
Frequency, horizontal (max) 82 kHz
Frequency, vertical (min) 56 Hz
Frequency, vertical (max) 75 Hz
I/O connectors 1 x 3.5 mm minijack
Built-in speakers No
Built-in TV tuner No
Auto pivot No
Certificates CE
VESA 100 x 100
Power consumption 25 Watt
Response time 16 millisecond
Viewing angle, horizontal 178 Degrees
Viewing angle, vertical 178 Degrees
Visible area, vertical 296.46 Millimetre
Visible area, horizontal 527.04 Millimetre
Web camera None
Width 575 Millimetre
Depth 42.5 Millimetre
Height 347 Millimetre

Description

ProLite TF2415MC-B2 is a multi-touch monitor using capacitive technology that guarantees durability and scratch resistance. What's more, any scratches on the screen do not affect the touch function. The monitor front is one smooth glass surface and has IP65 rating meaning that it can work in rooms with high dustiness and that it is resistant to water jets. Foam cover along the edge of the housing ensures perfect fit of the monitor to the mounting location. The kit comes with external mounting strips as standard, making this screen the perfect solution for touch system integrators.

Touch through the glass
The screen can be mounted under a glass window, and the touch function will continue to work without problems. It is an ideal solution in places where there is a high risk of flooding the screen e.g. in restaurants.

Touch technology - Capacitive
This technology uses electrical conductivity. The touch is registered because the electrical capacity changes where the finger touches the glass coating covering the screen. This coating not only guarantees excellent image quality, but also durability and scratch resistance. What's more, any scratches on the screen do not affect the touch function. The panel recognizes the touch made with a finger (also in a latex glove) or a special stylus.

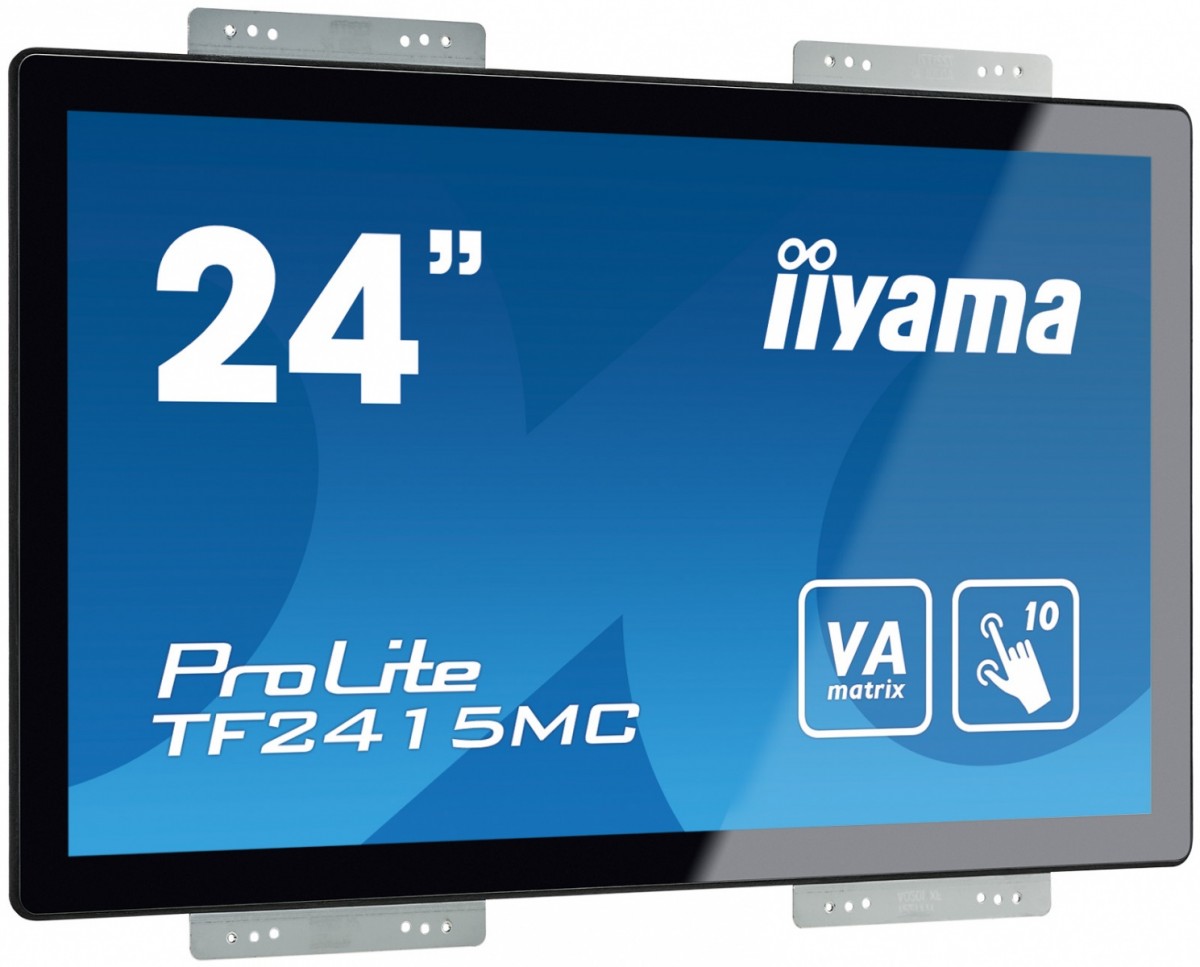

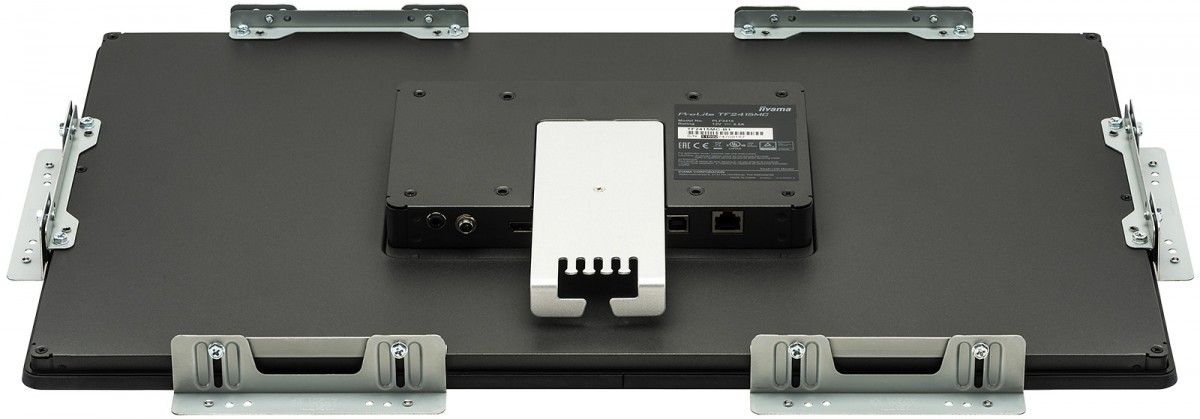

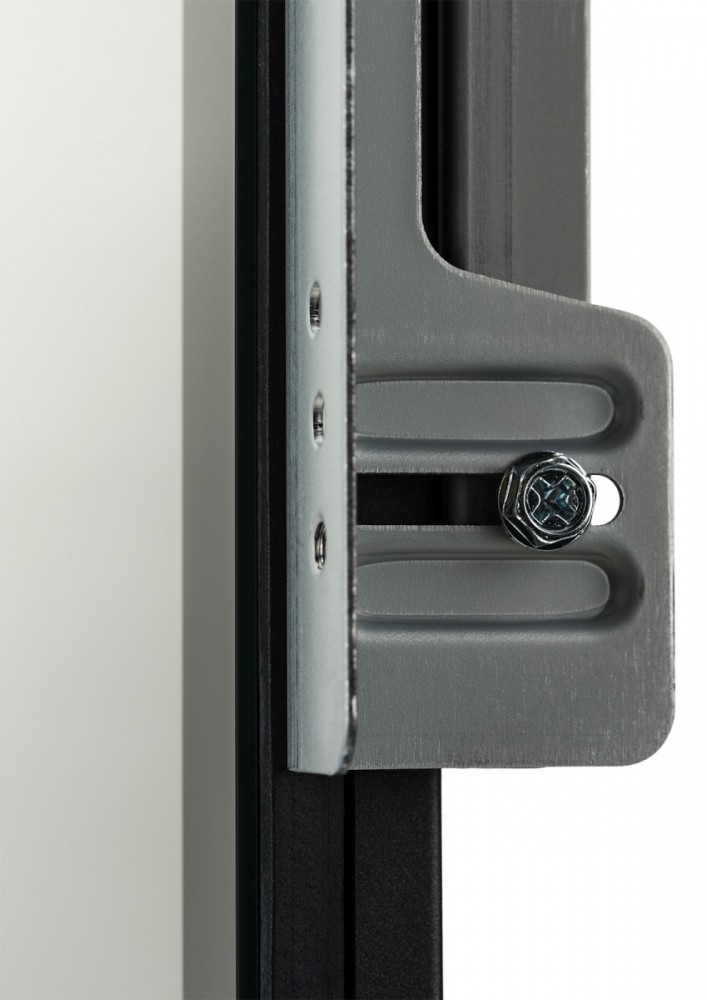

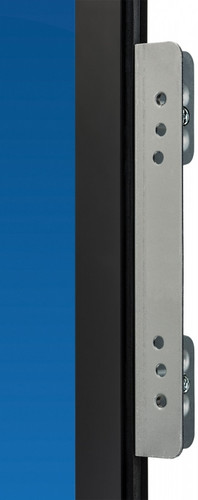

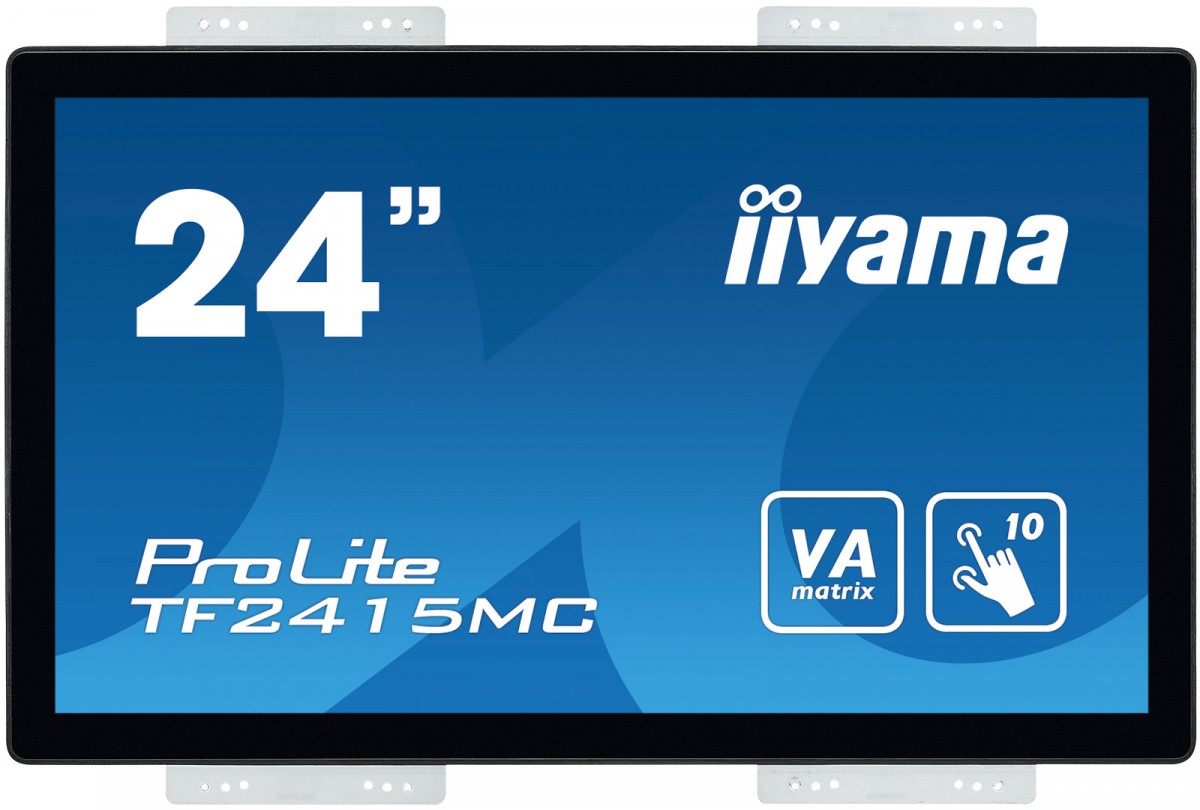

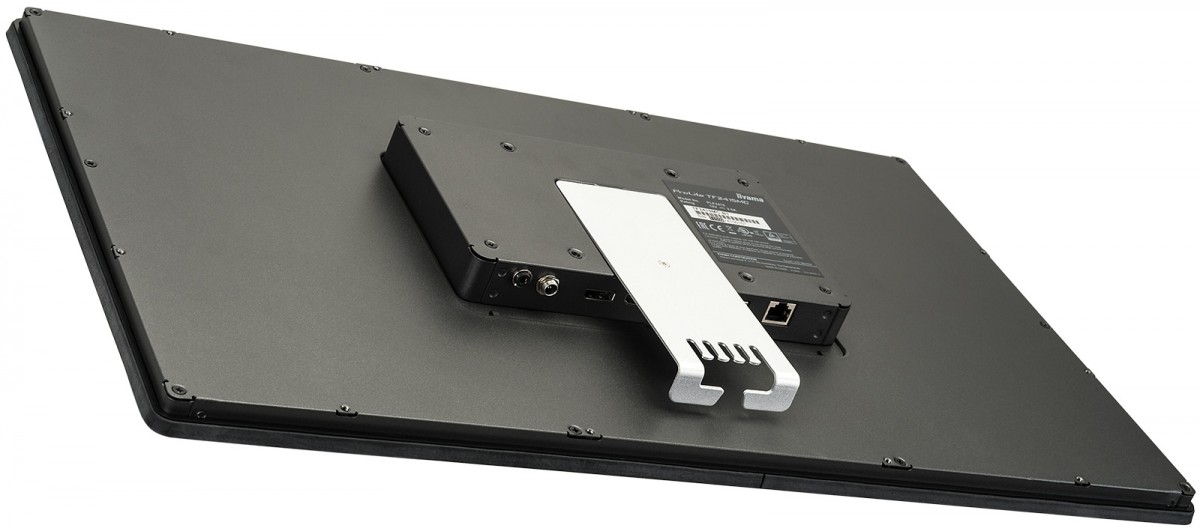

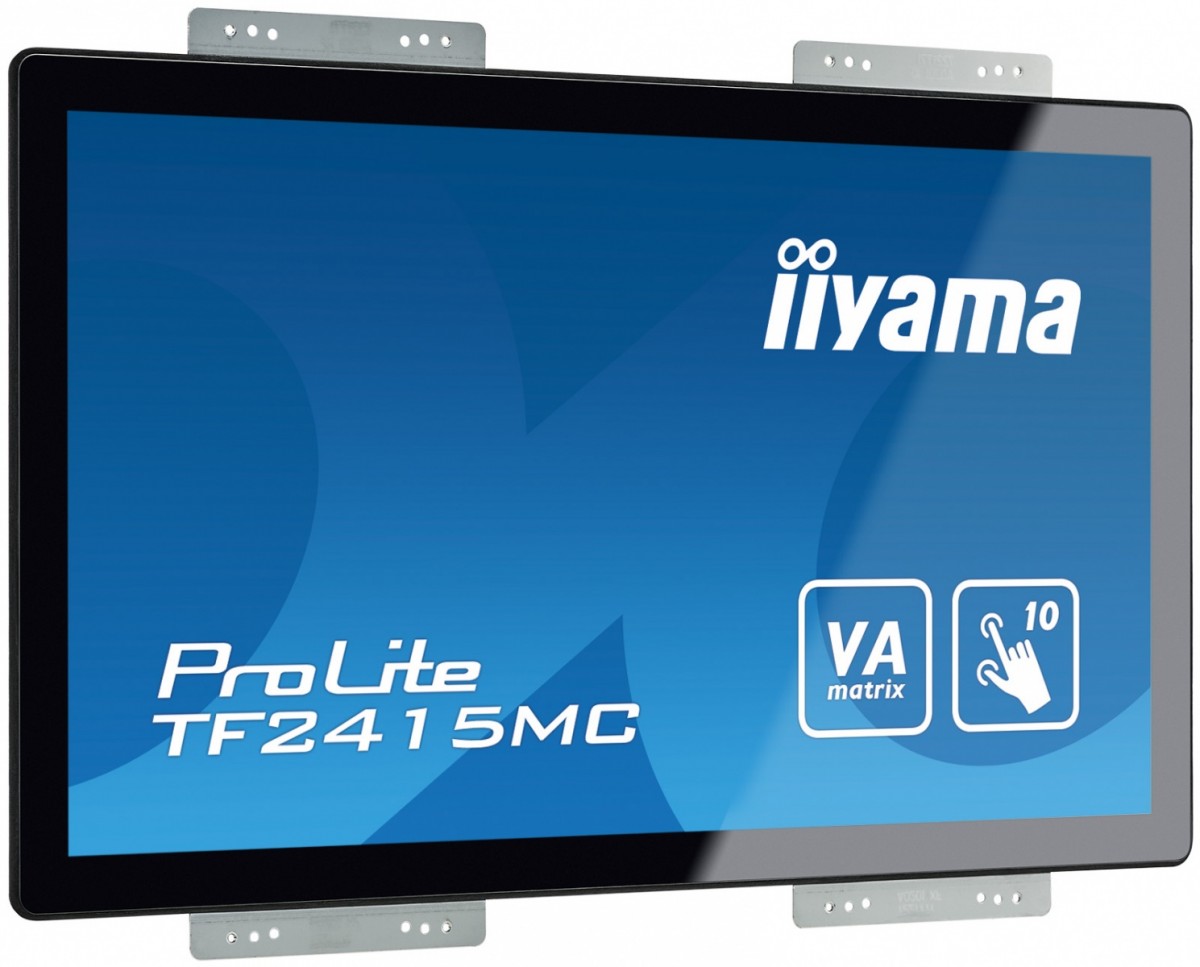

Open frame brackets
This open frame monitor is equipped with mounting strips as standard. This guarantees ease of installation in all kinds of interactive kiosks and outlets.

Foam cover
Foam cover (8mm) along the edge of the housing ensures perfect fit of the monitor to the mounting location and additionally protects against dust penetration.

Anti-fingerprint coating
The special nano coating ensures trouble-free operation and smooth touch. In addition, the screen becomes less susceptible to dirt, dust and fingerprints.





  • Power cable (1.8m)
  • USB cable (1.8m)
  • HDMI cable (1.8m)
  • DP cable (1.8m)
  • Quick User Guide
  • Safety Instructions
  • Power Supply
  • Touch Panel Driver Disk (CD-ROM)
  • Mounting strips
  • External control panel
